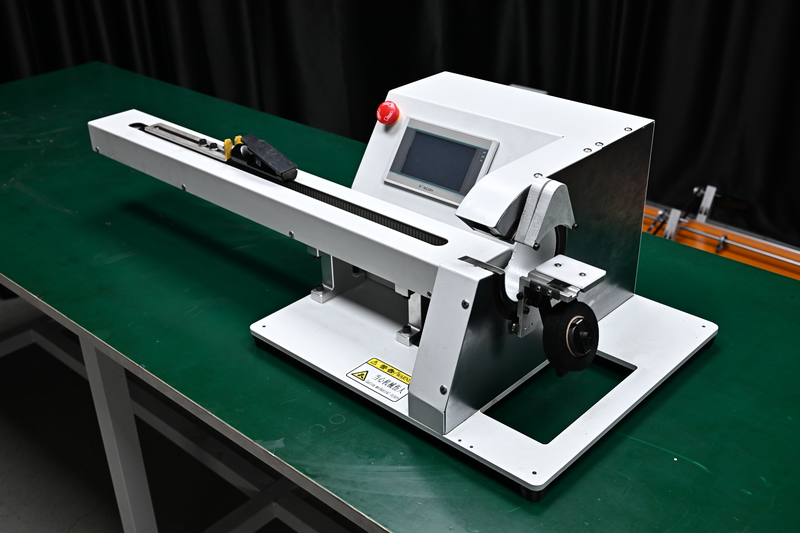

Adhesive Tape Wrapping Machine with Single-Side Wire Pulling JW-303K-1.0m

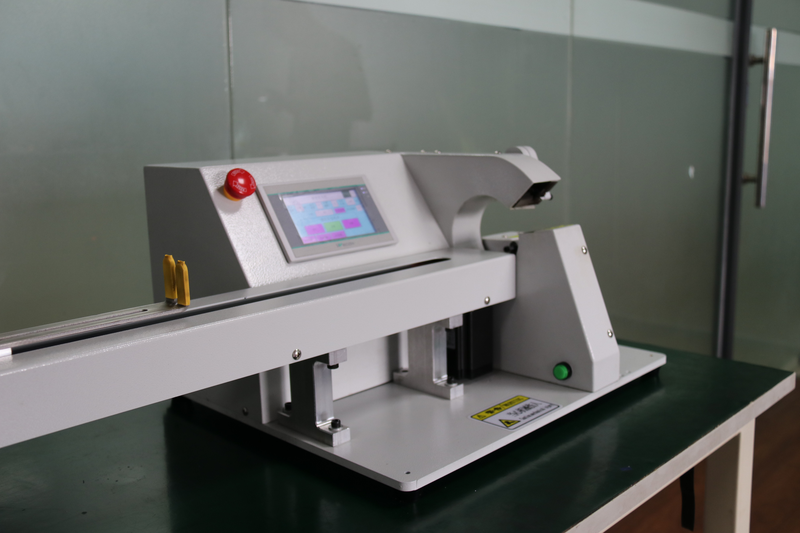

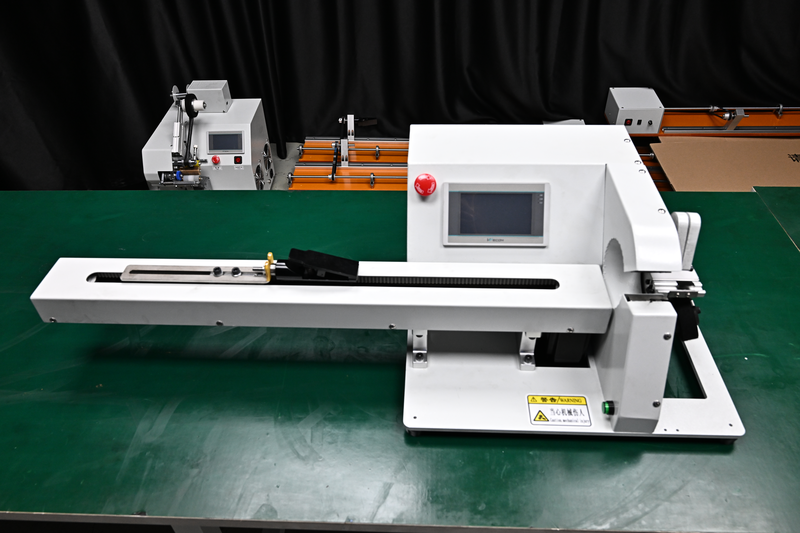

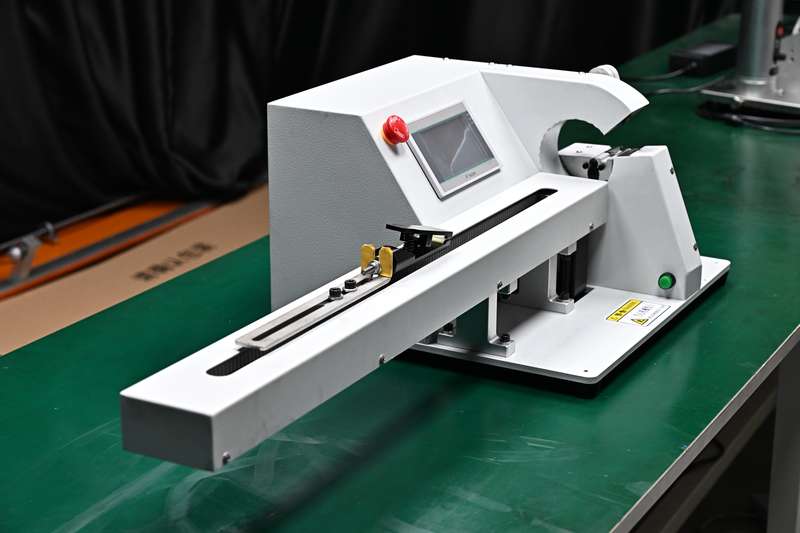

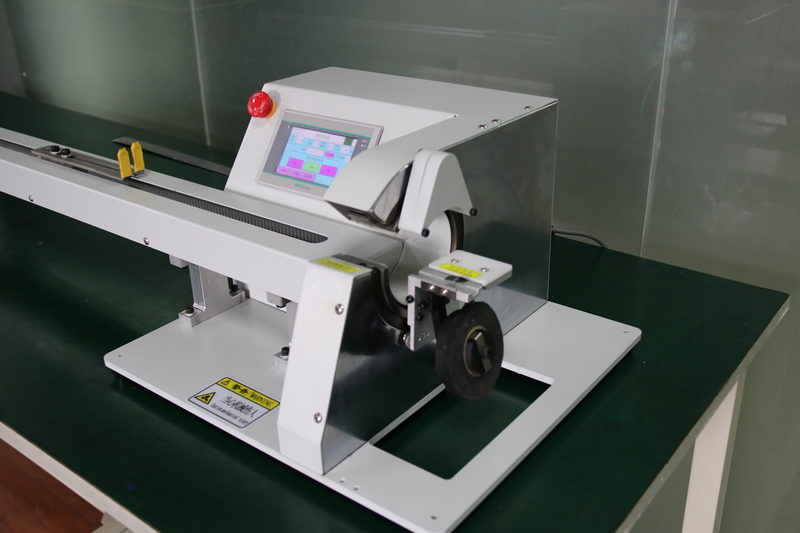

Adhesive Tape Wrapping Machine with Single-Side Wire Pulling JW-303K-1.0m Thumb

Adhesive Tape Wrapping Machine with Single-Side Wire Pulling JW-303K-1.0m

Name: Adhesive Tape Wrapping Machine with Single-Side Wire Pull...
Brand: JINGWEI TECHNOLOGY
SKU: JW-303K-1.0m
Availability: InStock
Rating: 5 (1 reviews)

Model No: JW-303K-1.0m
Specifications
Applicable Wire Diameter Ф3mm - 25mm
Adhesive Tape Compatibility - Maximum outer diameter: 110mm
- Width: 9mm - 30mm
- Inner hole: Ф38 (default); Ф32/Ф76 available on custom request
Wrapping Performance - Wrapping length: 1050mm (customizable for longer/shorter lengths)
- Stopping position accuracy: ±1mm
- Wrapping density: Adjustable via machine parameter settings
Main Machine Speed 200 - 1400 rpm (stepless adjustable)
Power Supply AC220V/DC24V 50/60HZ; 110V optional
Dimensions & Weight - Machine size: 1470mm × 380mm × 280mm (net weight: 36KG)
- Export wooden case size: 1640mm × 470mm × 440mm (gross weight: 60KG)
Suitable Tape Types PVC tape, plush tape, cloth-based tape, high-temperature tape, mica tape, ceramic tape, etc.
Inquiry now

Adhesive Tape Wrapping Machine with Single-Side Wire Pulling

Model: JW-303K-1.0m

1. Overview

The JW-303K-1.0m is a professional adhesive tape wrapping equipment integrated with single-side wire pulling function. It adopts a user-friendly touchscreen operation system and spiral wrapping method, designed to meet high-precision wrapping requirements for various wire harnesses. With flexible parameter adjustment and wide compatibility with tape types, it is an ideal solution for wire harness processing in industrial scenarios.

2. Core Specifications

Specification Category	Details
Applicable Wire Diameter	Ф3mm - 25mm
Adhesive Tape Compatibility	- Maximum outer diameter: 110mm - Width: 9mm - 30mm - Inner hole: Ф38 (default); Ф32/Ф76 available on custom request
Wrapping Performance	- Wrapping length: 1050mm (customizable for longer/shorter lengths) - Stopping position accuracy: ±1mm - Wrapping density: Adjustable via machine parameter settings
Main Machine Speed	200 - 1400 rpm (stepless adjustable)
Power Supply	AC220V/DC24V 50/60HZ; 110V optional
Dimensions & Weight	- Machine size: 1470mm × 380mm × 280mm (net weight: 36KG) - Export wooden case size: 1640mm × 470mm × 440mm (gross weight: 60KG)
Suitable Tape Types	PVC tape, plush tape, cloth-based tape, high-temperature tape, mica tape, ceramic tape, etc.

3. Key Functions

Multiple Wrapping Modes: Supports full wrapping, interval wrapping, and spot wrapping. The overlap area of the tape can be freely adjusted according to processing needs.
Precision Control: Enables accurate setting of tape wrapping length, with a stopping position accuracy of ±1mm, ensuring consistent quality for multi-segment wrapping requirements.
User-Friendly Operation: Equipped with a touchscreen interface for intuitive parameter input (e.g., wrapping density, length, speed) and real-time operation monitoring, reducing operational complexity.
