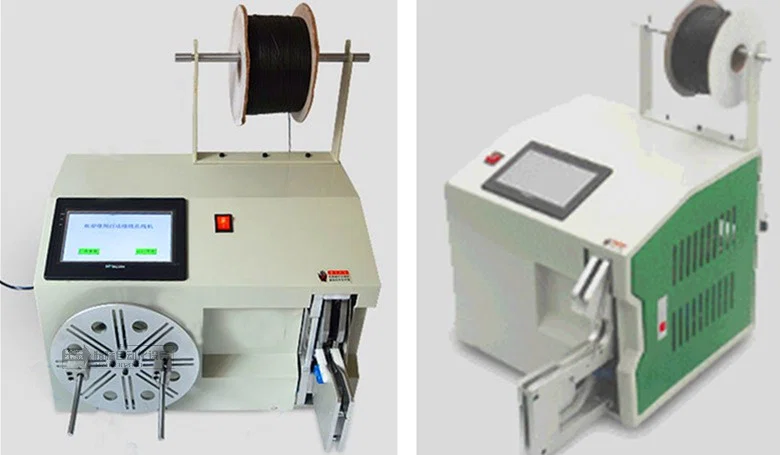

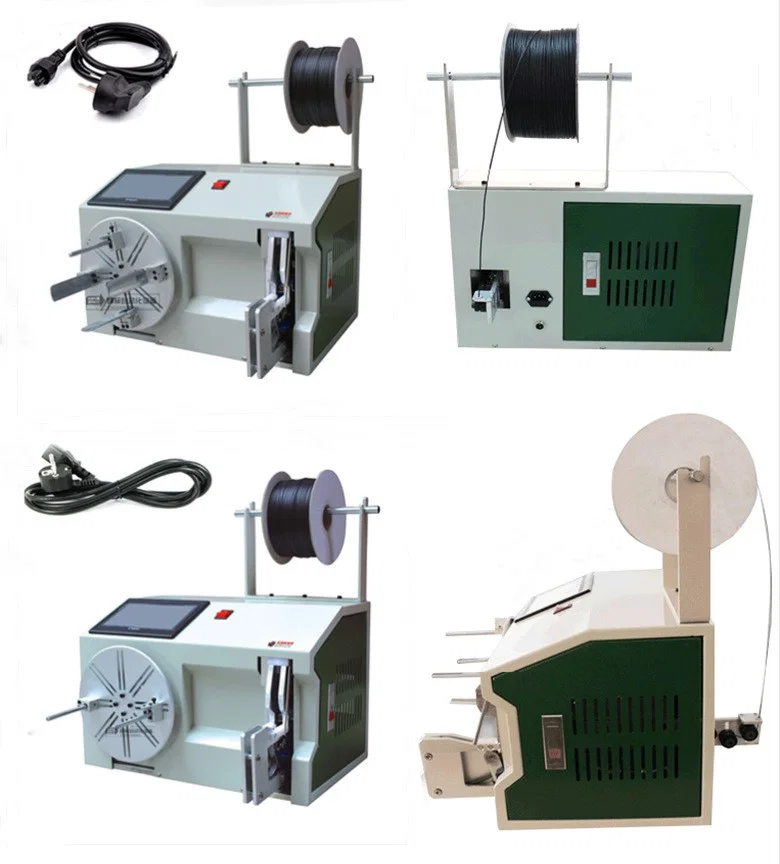

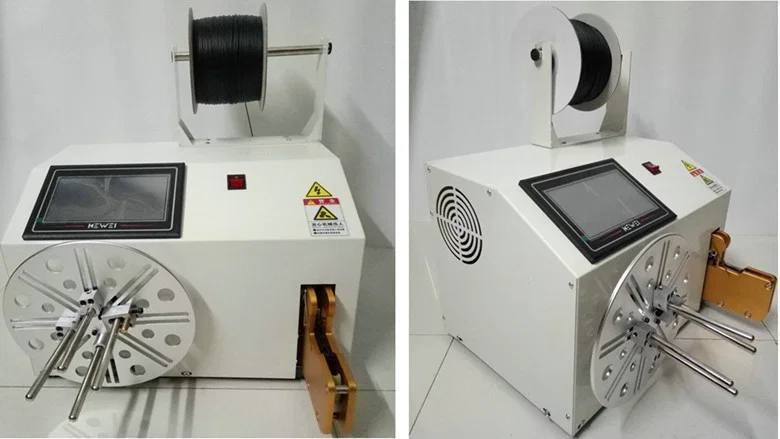

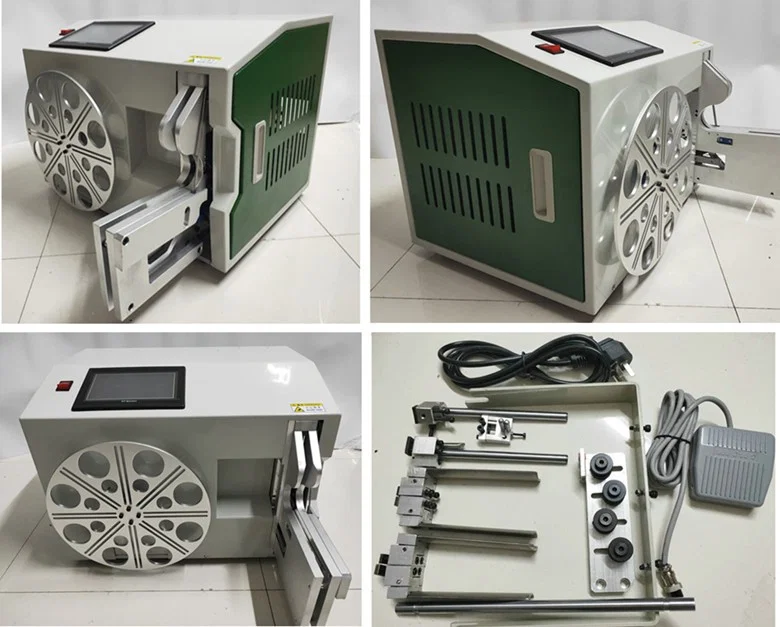

Automatic wire coiling and binding machine
Automatic wire coiling and binding machine
  • Automatic wire coiling and binding machine

  • Model No: WPM-212

  • wire coiling and binding machine, Wire Twist Tie Machine, Cable Coil Winding, And Binding Machine, Cable Coil Binding Machine, Automatic Wire Twist Tie Machine
    Winding range* 50-200mm
    Binding range* 8-30mm
    Twist shape Round, long, 8shape
    Available wire AC cable, DC cable, data line, video cable, and other electric wires
    Length accuracy ±(0.002*L) mm
    Productivity 66-75 times/min
    Noise level <70dBA
    Electrical connection AC 220/110V/50/60HZ
    Operation interface Bilingual
    Machine dimensions: 500*300*400mm
    Weight: 40kg
    Package: Wooden case
    Port of Loading: Xiamen
    Lead time 3-5 days after payment
    Payment Way T/T, Paypal, Western Union

  • Inquiry now
Detailed description

wire coiling and binding machine, Wire Twist Tie Machine, Cable Coil Winding, And Binding Machine, Cable Coil Binding Machine, Automatic Wire Twist Tie Machine
Features:
1. Semi-automatic winding& bunding machine takes advanced technology and precision manufacturing, winding and tying   AC cable, DC cable, data wire, cable, other electric wires, and twisted bundles. Wire heads can be on one side or two sides. Winding and tying are accomplished at one time.
2. This work efficiency is three to four times faster than working by hand. Ending the history of enormous labor and injuring fingers as well as saving the high cost of the proprietor.

 Characters:
1. The machine is controlled by PLC or controller and touch screen display. Speed of winding cable, several circles can be set up at random according to users’ requirements.
2. This machine can show the actual production quantity at any time, and also set up the quantity of each carton. When the quantity range setting quantity, the machine will automatically alert and shut down.
3. When something wrong during work, the machine warns operators immediately.


Automatic wire coiling and binding machine


Model

WPM-212

WPM-212A

WPM-212C

WPM -212L

Winding range*

50-200mm

 50-200mm

 50-250mm

 50-300mm

Binding range*

8-30mm

 5-30mm

 18-45mm

 40-80mm

Tie length

65-130mm

75-140mm

120-190mm

200-300mm

Twist shape

Round, long, 8shape

 Round, long, 8shape

 Round, long, 8shape

 Round, long, 8shape

Available wire

AC cable, DC cable, data line, video cable, other electric wires

AC cable, DC cable, data line, video cable, other electric wires

AC cable, DC cable, data line, video cable, other electric wires

AC cable, DC cable, data line, video cable, other electric wires

Length accuracy

±(0.002*L) mm

 ±(0.002*L) mm

 ±(0.002*L) mm

 ±(0.002*L) mm

Productivity

66-75 times/min

 66-75 times/min

 66-75 times/min

 66-75 times/min

Noise level

<70dBA

 <70dBA

 <70dBA

 <70dBA

Electrical connection

AC 220/110V/50/60HZ

 AC 220/110V/50/60HZ

 AC 220/110V/50/60HZ

 AC 220/110V/50/60HZ

Operation interface

Touch screen

Touch screen

 Touch screen

Touch screen

Machine dimension:

485*456*315mm

455*456*315mm

485*435*340mm

 550*610*420mm

Weight:

45kg

42kg

 52kg

 65kg

Package:

Wooden case

 Wooden case

 Wooden case

 Wooden case

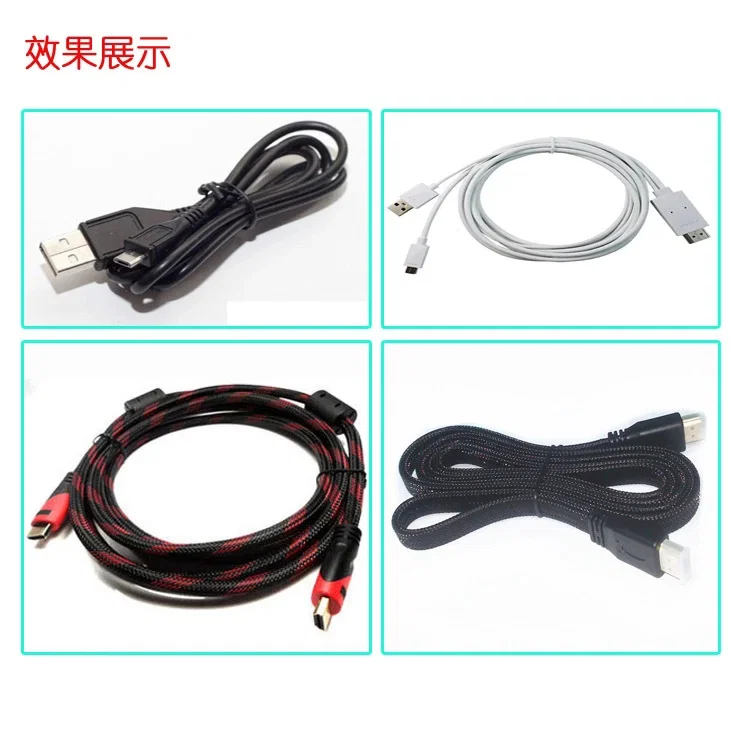

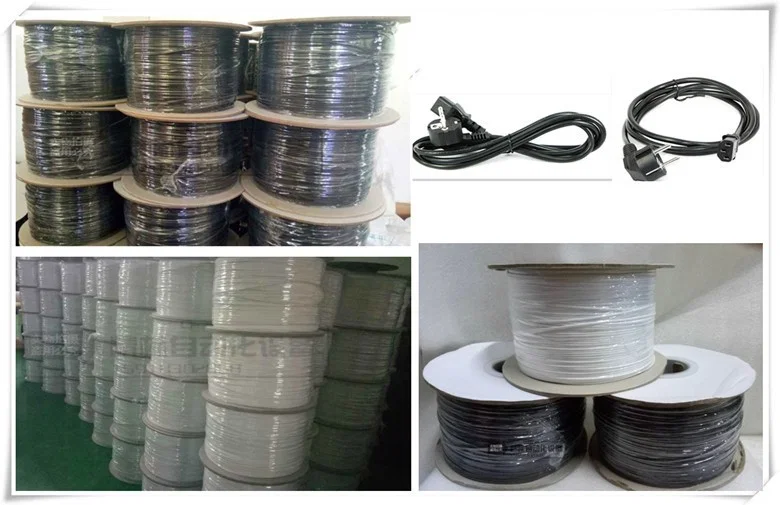

sample of wire coiling and binding machine
sample of wire coiling and binding machine










wire coiling and binding machinewire coiling and binding machinewire coiling and binding machineWire Twist Tie Machinetwisting tie
