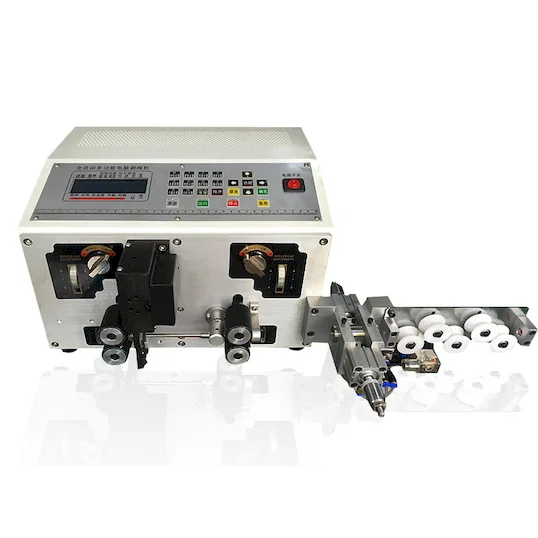

computerized wire cutting and stripping machine WPM-09JE
computerized wire cutting and stripping machine WPM-09JE
  • Computerized wire cutting and stripping machine WPM-09JE

  • Model No: WPM-09JE

  • computerized wire cutting and stripping machine
    Adopt advanced automation technology from Japan, and Taiwan.
    It is a kind of numerical control equipment.
    Apply for:
    Widely used in the electronics industry, the city has electrical appliances, motors, lamps, toys,
    and other various products of wire processing.
    Optimal stripped wire PVC/Teflon/silica gel line /. Glass fiber, etc.
    Specification:
    Available Wire Cross-Section Range: 0.1~8.0mm2(AWG8#-AWG32#)
    Conduit Diameter: ¢10mm
    Cutting Length: 1~9999mm
    Cutting tolerance: ± (0.002 × L) (Cutting length)
    Stripping Length: Head 0~50mm, Tail 0~50mm
    Middle Stripping Section: Max 11
    Speed: 3000-5000pcs/h
    Display Way: English LCD
    Drive Mode: 4 Drives
    Blade Material: Hard tungsten steel
    Appropriate Wire: Electrical wires, PVC/Silica gel line/Glass fiber cables
    Power Supply: 220V/50Hz 110V/60Hz
    Power Rating: 300W
    Measurement: 537 * 507 * 400 mm
    Weight: 34kg

  • Inquiry now
Detailed description

computerized wire cutting and stripping machine, Wire Stripping Cutting Machine, Wire Stripping MachineWPM-09JE
Features:
Automatic Full Computer Wire Stripping Machine
Adopt advanced automation technology from Japan, and Taiwan.
It is a kind of numerical control equipment.
Apply for:
Widely used in the electronics industry, the city has electrical appliances, motors, lamps, toys,
and other various products of wire processing.
Optimal stripped wire PVC/Teflon/silica gel line /. Glass fiber, etc.
Specification:
Available Wire Cross-Section Range: 0.1~8.0mm2(AWG8#-AWG32#)
Conduit Diameter: ¢10mm
Cutting Length: 1~9999mm
Cutting tolerance: ± (0.002 × L) (Cutting length)
Stripping Length: Head 0~50mm, Tail 0~50mm
Middle Stripping Section: Max 11
Speed: 3000-5000pcs/h
Display Way: English LCD
Drive Mode: 4 Drives
Blade Material: Hard tungsten steel
Appropriate Wire: Electrical wires, PVC/Silica gel line/Glass fiber cables
Power Supply: 220V/50Hz 110V/60Hz
Power Rating: 300W
Measurement: 537 * 507 * 400 mm
Weight: 34kg

Model

WPM-09D

WPM-09JE

WPM-09JE

Wire material

PVC, teflon, fiberglass wire...

 PVC, teflon, fiberglass wire...

PVC, teflon, fiberglass wire...

Conductor cross-section

0.1 - 8.0 mm² (32 - 8 AWG)

0.1 - 8.0 mm²(32 - 8 AWG)
Note: BV wire < 4mm²

0.1 - 10 mm²(32 - 7 AWG)
Note: single-stranded BV < 6 mm²; 7 core BV < 10 mm²

Cutting length

1 - 99,999 mm

1 - 99,999 mm

1 - 100,000 mm

Cutting length tolerance

0.002 * L

0.002 * L

 0.002 * L

Stripping length

Side I: 0 - 35 mm

Side II: 0 - 15 mm

Side I: 0-50mm

Side II: 0 - 50 mm

Side I: 0 - 80 mm

Side II: 0 - 80 mm

Maximum guide tube diameter

8 - 10 mm

8 - 10 mm

13 mm

Productivity

33 - 83pcs/min

33-83pcs/min

50-133pcs/min

Noise level

< 70 dB(A)

< 70 dB(A)

< 70 dB(A)

Power supply

110, 220 V (50 - 60 Hz)

110, 220 V (50 - 60 Hz)

110, 220 V (50 - 60 Hz)

Power

300 W

300 W

500 W

Gross Weight

34 kg

34 kg

34 kg

Carton dimension

537 * 507 * 400 mm

537 * 507 * 400 mm

537 * 507 * 400 mm



Cable Stripping Machine,Wire Stripping Cutting Machine,Wire Stripping MachineSample display of Cable Stripping Machine,Wire Stripping Cutting Machine,Wire Stripping Machine
