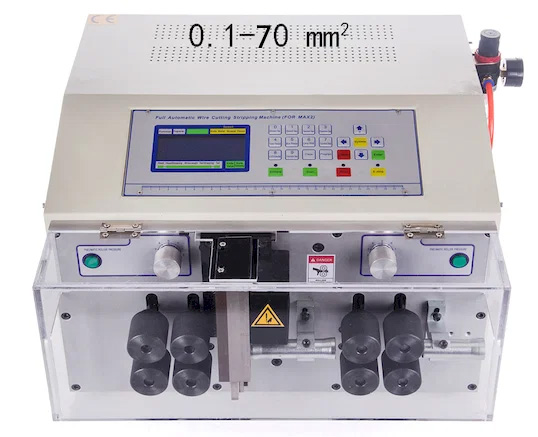

Heavy-duty wire stripping machine (WPM-MAX2-70) 70 sq.mm
Heavy-duty wire stripping machine (WPM-MAX2-70) 70 sq.mm
  • Heavy-duty wire stripping machine (WPM-MAX2-70) 70 sq.mm

  • Model No: WPM-MAX2-50

  • Heavy-duty wire stripping machine, Supper Thick cable cutting and stripping machine, BV/BVR cable stripping machine
    Wire cross-section: 0.1-7.0sq.mm
    Conduit diameter: 18mm
    Stripping length: Head side 0-150mm
    Tail side 0-150mm
    Cutting length: 1mm-100000mm
    Measurement: 40cm*52cm*35cm

  • Inquiry now
Detailed description

Heavy-duty wire stripping machine, Supper Thick cable cutting and stripping machine, BV/BVR cable stripping machine
Features:
Automatic Full Computer Wire Stripping Machine
Adopt advanced automation technology from Japan, and Taiwan.
It is a kind of numerical control equipment.
 Apply for:
Widely used in the electronics industry, the city has electrical appliances, motors, lamps, toys,
and other various products of wire processing.
Optimal stripped wire PVC/Teflon/silica gel line /. Glass fiber, etc.
Specification:
Available Wire Cross-Section Range: 0.1~70.0mm2
Conduit Diameter: ¢18mm
Cutting Length: 1mm~100000mm
Cutting tolerance: ± (0.002 × L) (Cutting length)
Stripping Length: Head 0~150mm, Tail 0~150mm
Middle Stripping Section: Max 16
Speed: 5000-6000pcs/h
Display Way: English/Chinese LCD
Drive Mode: 8 Drives
Blade Material: Hard tungsten steel
Appropriate Wire: Electrical wires, PVC/Silica gel line/Glass fiber cables
Power Supply: 220V/50Hz 110V/60Hz
Power Rating: 1000W
Measurement: 400mm×515mm×345mm
Weight: 72kg
