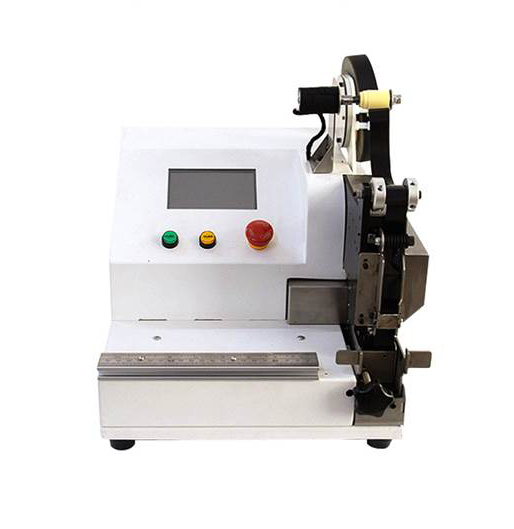

Precision Point-winding Tape Wrapping Machine WPM-DC01

Name: Precision Point-winding Tape Wrapping Machine WPM-DC01
Brand: JINGWEI Technology
SKU: WPM-DC01
Availability: InStock
Rating: 5 (1 reviews)

Model No: WPM-DC01
Model Number WPM-DC01
Input Power Supply 220V / AC
Adhesive Tape Width 5 - 20mm (Universal for adhesive tapes, no need to replace parts)
Adhesive Tape Material PVC / Base / Flannel and other kinds of high - temperature glass fiber adhesive tapes
Adhesive Tape Length Adjustable from 22 to 60mm (Customization is available if not within this range)
Applicable Wire Diameter 2 - 20mm (Customization is available if not within this range, please contact customer service)
External Dimensions L350mm * W400mm * H350mm
Inquiry now

Detailed description

Machine Features
1. The machine adopts a pure electric design, with a compact size and strong practicability.
2. It adopts a special cutting method, and the knife edge never sticks with glue.
3. The tightening mechanism uses nano - material soft brushes, achieving better tightening effect.
4. The left side is equipped with an identification ruler, facilitating the positioning and winding.
5. There is no need to replace parts when changing adhesive tapes of different widths.
6. The novel adhesive tape - loading mechanism allows the adhesive tapes of different inner circles to be universal.
7. An optional paper - receiving tape mechanism is available.
8. The length of the adhesive tape head is adjustable.

Name Precision Intelligent Point - winding Machine
Model Number WPM-DC01
Input Power Supply 220V / AC
Adhesive Tape Width 5 - 20mm (Universal for adhesive tapes, no need to replace parts)
Adhesive Tape Material PVC / Base / Flannel and other kinds of high - temperature glass fiber adhesive tapes
Adhesive Tape Length Adjustable from 22 to 60mm (Customization is available if not within this range)
Applicable Wire Diameter 2 - 20mm (Customization is available if not within this range, please contact customer service)
External Dimensions L350mm * W400mm * H350mm
Machine Weight 42KG
