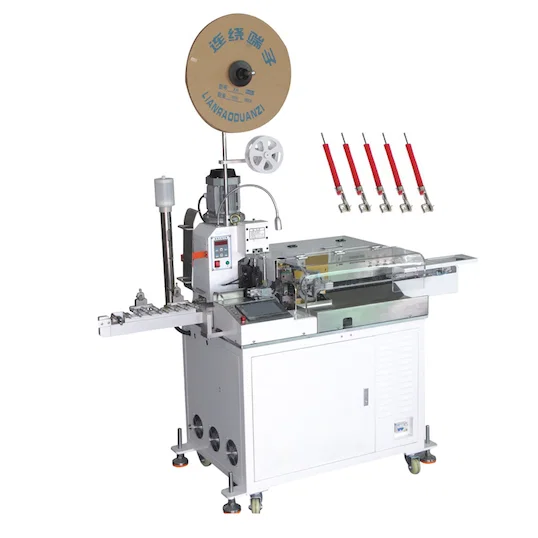

Fully Automatic single-end 5 wire cutting stripping crimping
Fully Automatic single-end 5 wire cutting stripping crimping
  • Fully Automatic single-end 5 wire cutting stripping crimping

  • Model No:

  • Fully Automatic single-end 5 wire cutting stripping crimping and tinning machine,Wire Cutting Stripping Crimping Tinning, Wire Cutting Stripping Crimping Tinning Machine, Wire Crimping Tinning Machine
    The machine is designed to automatically cut, and strip wires, and single-end crimp terminal, and the other end dip tin. With high efficiency and high accuracy.
    Machine Dimensions(L*W*H): 1210*770*1370mm.
    Machine Weight: 450KG.
    Features:
    1. Control system: Delta PLC.
    2. Cylinder: Germany Mayer.
    3. Solenoid valve: Festo, Germany.
    4. Screw guide: Taiwan silver.
    5. Servo motor drive: Hechuan (optional with Mitsubishi).
    6. Pneumatic components: SMC
    7. Temperature control table: Omron

  • Inquiry now
Detailed description

Fully Automatic single-end 5 wire cutting stripping crimping and tinning machine, Wire Cutting Stripping Crimping Tinning, Wire Cutting Stripping Crimping Tinning Machine, Wire Crimping Tinning Machine




The machine is designed to automatically cut, and strip wires, and single-end crimp terminal, and the other end dip tin. With high efficiency and high accuracy.

Features

Machine Dimensions(L*W*H): 1210*770*1370mm.

Machine Weight: 450 kg.


Features:

1. Control system: Delta PLC.

2. Cylinder: Germany Mayer.

3. Solenoid valve: Festo, Germany.

4. Screw guide: Taiwan silver.

5. Servo motor drive: Hechuan (optional with Mitsubishi).

6. Pneumatic components: SMC

7. Temperature control table: Omron


Advantages:

1. Factory-direct sales, excellent quality, computer touch screen Chinese/English operation menu is easy to learn and use.

2. Using imported high-precision parts, stable performance.

3. The operation is simple, the length of the wire, the cutting speed, the time of immersion tin, and the number of times of tin dipping are completely touched by the touch screen, which realizes that some wires that are difficult to tin are dipped in the tin.

4. Lead-free tin furnace meets high environmental protection standards; has an automatic tin scraping device, which makes the cut wire bright without tin residue; the tin scraping time can be set to make the tin loss reach the bottom; the tin is dipped at a 90-degree angle, and the tin mouth is even.

Specification

Item value

Place of Origin China

Usage Both ends cut, strip, one end twist dip tin, one end crimp

Warranty 1 Year

Efficiency 6000-8000/H depends on the product

Applicable wire AWG18-24 / AWG24-32

Cutting length 15-1000mm

Cutting tolerance 0.2+/-0.02* Length

Stripping length 0-9mm

Twist length 3-9mm

Tinning length 0.5-9mm

Crimping force 2T, customized

Air supply 0.5~0.7MPA

Wire Cutting Stripping Crimping Tinning, Wire Cutting Stripping Crimping Tinning Machine, Wire Crimping Tinning Machinesample display of Wire Cutting Stripping Crimping Tinning, Wire Cutting Stripping Crimping Tinning Machine, Wire Crimping Tinning Machine
