HDMI Cable Production Procedure

HDMI /USB 3.0/USB 3.1 cable manufacturing process and equipment
 Cut and strip the cable
Process 1:   Cut and strip the cable

Automatic wire cutting and stripping machine



Process 2:  Trim the Aluminum foil
 Trim the Aluminum foil
 Vertical Aluminum foil trimming machine

  Position the inner wire on the plastic wire claw holder

Process 3:  Position the inner wire on the plastic wire claw holder
  Angle-type wire traverse machine



Process 4:  Strip the inner wire
Position the inner wire on the plastic wire claw holder

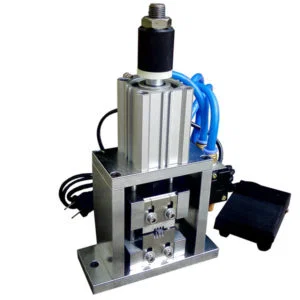

 Stripping machine for two side



Process 5:  Tin the inner wire



Process 6:  Assemble the connector with wire



Process 7:  welding the connector

  High-frequency welding machine
 High-frequency welding machine


Process 8:  mold the connector

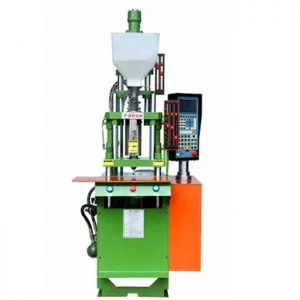

 Injection molding machine
  Injection molding machine
