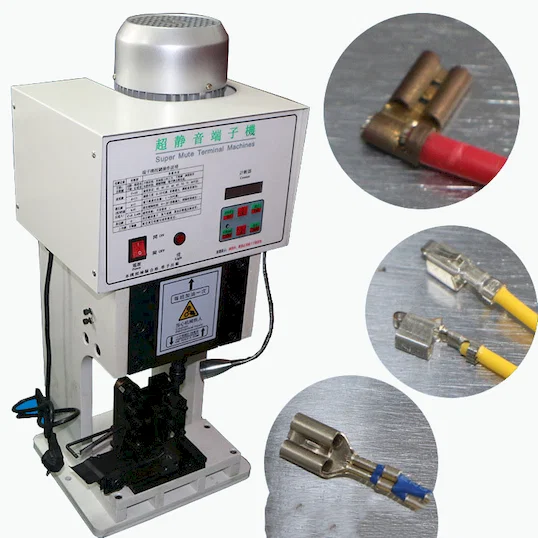

semi-automatic terminal crimping machine WPM-4000S
semi-automatic terminal crimping machine WPM-4000S
  • Semi-automatic terminal crimping machine WPM-4000S

  • Model No: WPM-4000S

  • semi-automatic terminal crimping machine WPM-4000S,Terminal crimping machine, Wire Terminal Crimping Machine, Electric Terminal Crimping Machine
    power AC 220V 50/60 HZ (single-phase)
    stroke 30mm
    press capacity 4Ton
    Dimension 380Wx280Lx470H(mm)
    weight 70KG

  • Inquiry now
Detailed description
semi-automatic terminal crimping machine WPM-4000S
Terminal crimping machine, Wire Terminal Crimping Machine, Electric Terminal Crimping Machine
terminal crimping machine
1. Frequency conversion
2. Crimp force: 4.0 ton
3. Stroke: 30 mm
terminal crimping machine

Features:
Built-in frequency converter, high speed, and low noise.
Our machine is suitable for various terminals and very easy to change the applicator.
Support manual mode and an automatic mode, you can adjust the machine easily in manual mode
LED display will show how many terminals have been crimped.
Speed is adjustable, the crimping die is designed according to your requirements.
specification:

Model WPM-4000S
powerAC 220V 50/60 HZ (single-phase)
stroke 30mm
press capacity4Ton

Mold

WPM-1000S

WPM-1500S

WPM-2000S

WPM-3000S

WPM-4000S

WPM-6000S

Power supply

AC220V 50/60HZ

AC220V 50/60HZ

AC220V 50/60HZ

AC220V 50/60HZ

AC220V 50/60HZ

AC220V 50/60HZ

Pressing force

1000kc

1500kc

2000kc

3000kc

4000kc

6000kc

Motor power

0.35kw

0.55kw

0.75kw

1.0kw

1.5kw

2.2kw

Trip

30mm

30mm

30mm

30mm

30mm

30mm

Size

460*210*220mm

230*210*580mm

275*225*670mm

275*245*670mm

300*265*680mm

830*360*320mm

Weight

25kg

40kg

50kg

60kg

95kg

120kg
